Drive Train | Engine | 22re |
Transmission | G58 | |

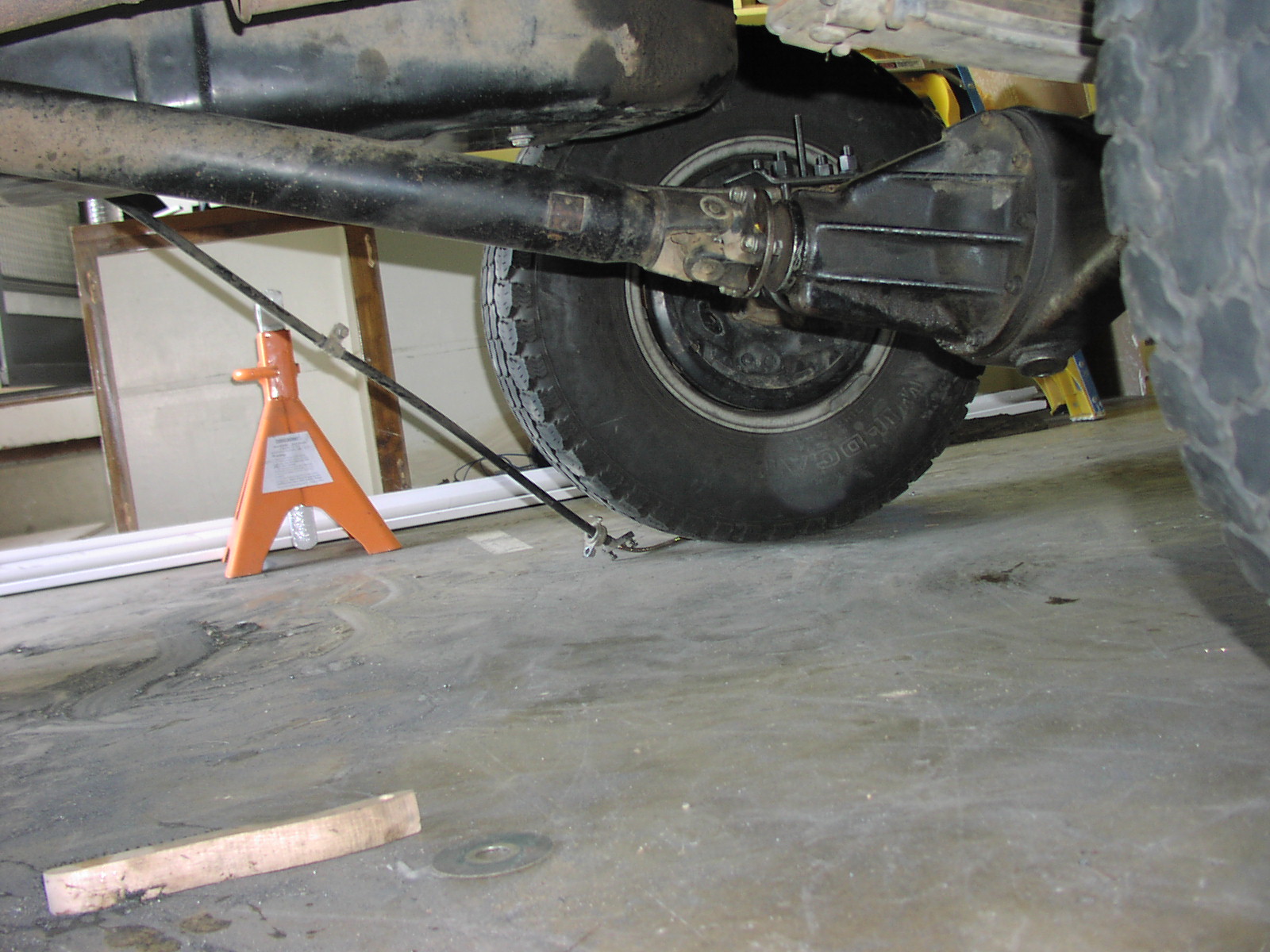

Front Drive Shaft | Square tubing & welder |
|

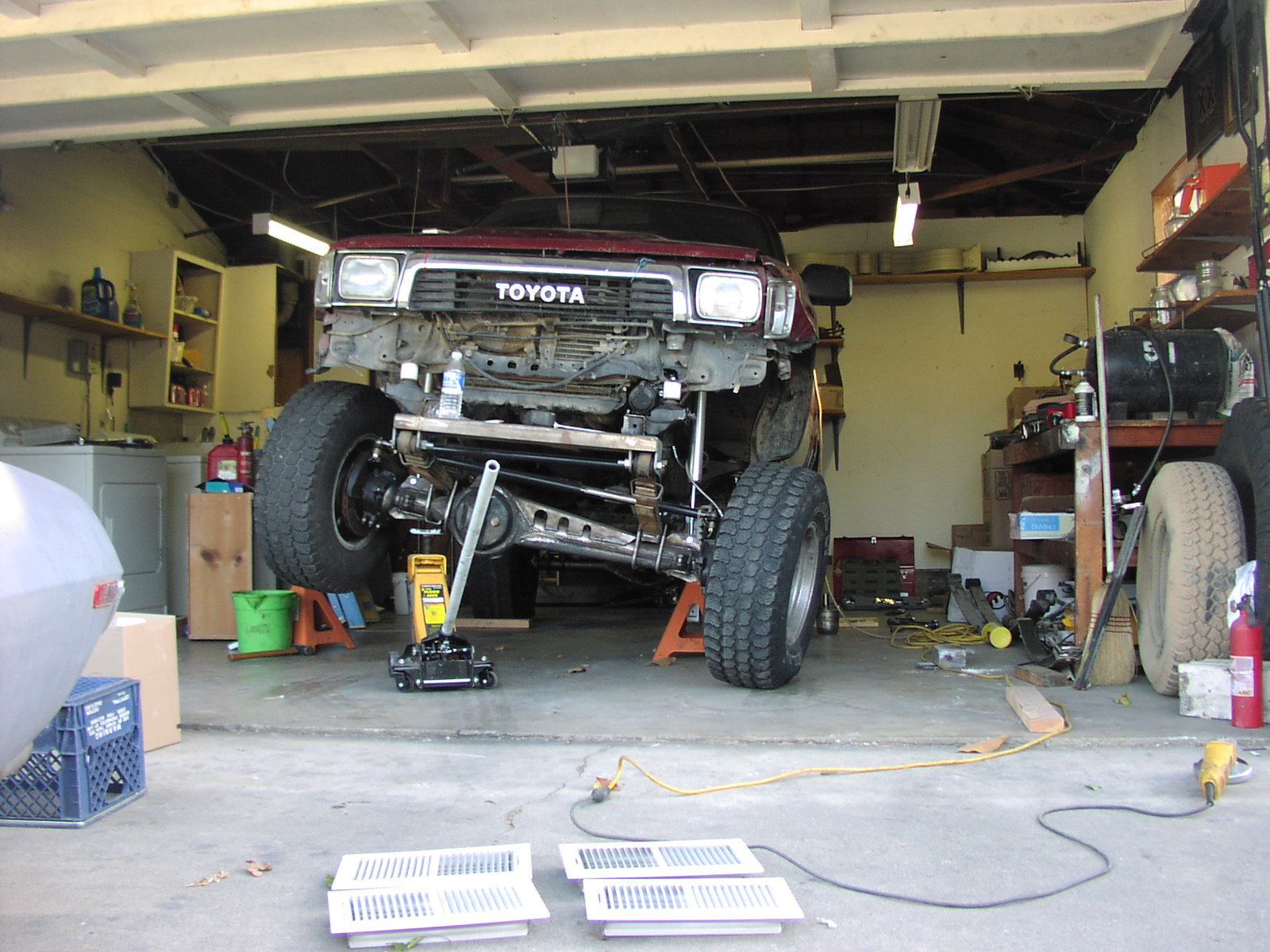

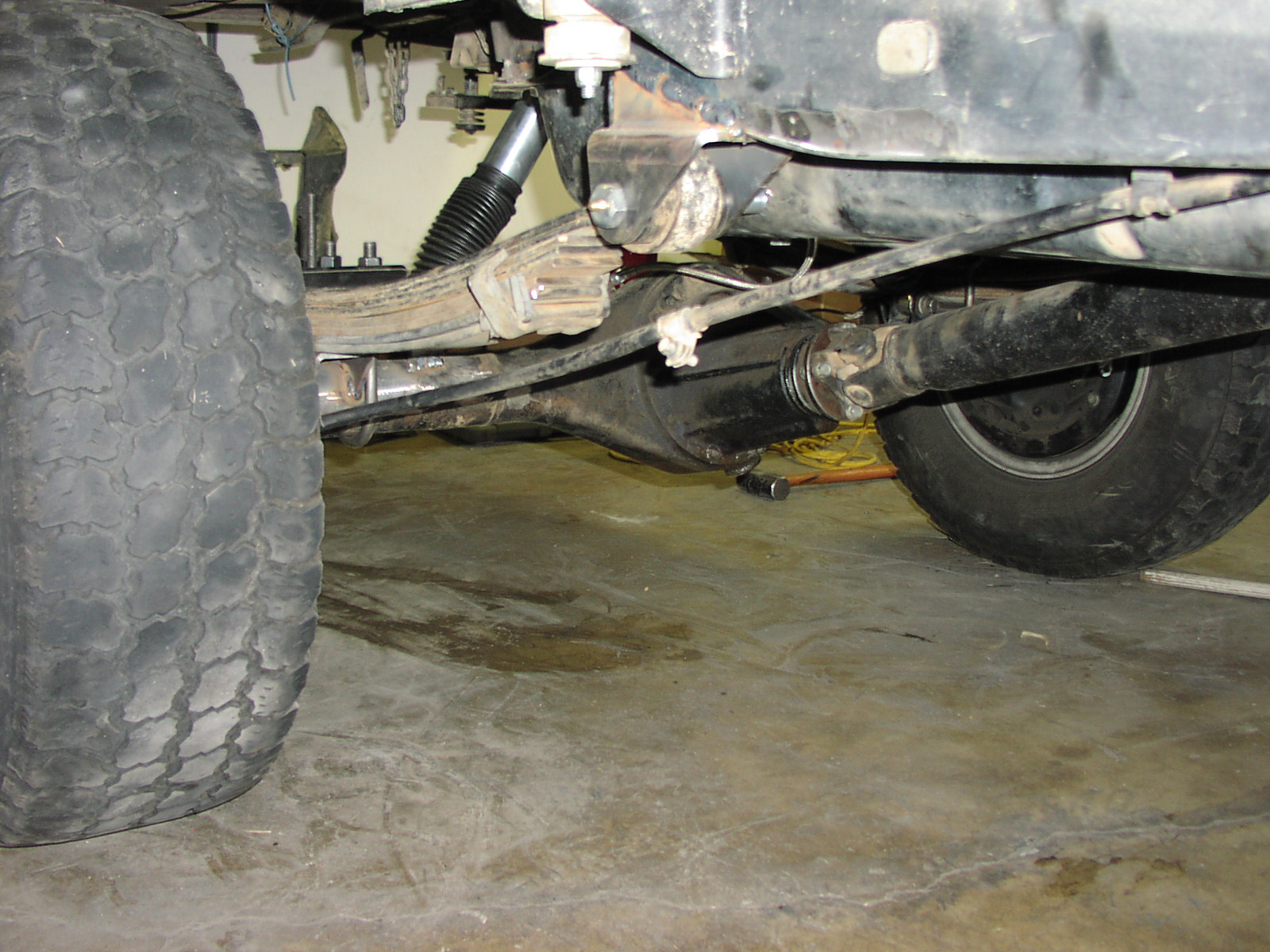

Front Axle | 1985 Axle Housing | from parts truck |
Differential | Open 4.10 | |
Perch Leveling Plate | Big Rocks | |
Shock Perches | Made Them | |
Knuckle Service Kit | MarlinCrawler.com | |

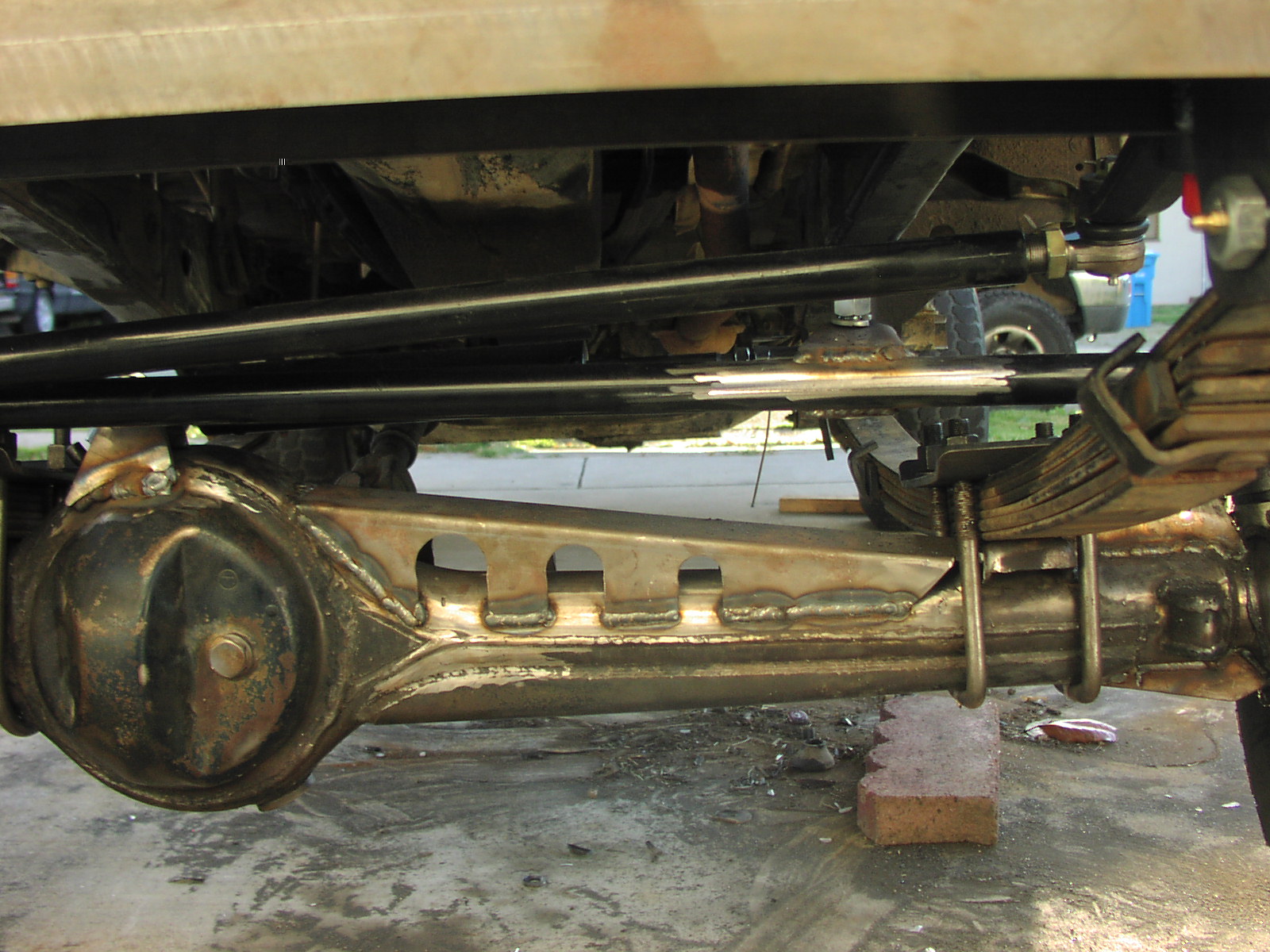

Upper Axle Reinforcement Gusset | MarlinCrawler.com | |
Knuckle Ball Kit | MarlinCrawler.com | |
Steel Braided Brake Lines | MarlinCrawler.com |
|
V6 IFS Brake Calipers | Napa | |
FJ60 Vented Rotors | Napa | |
Brake Pads | Napa | |

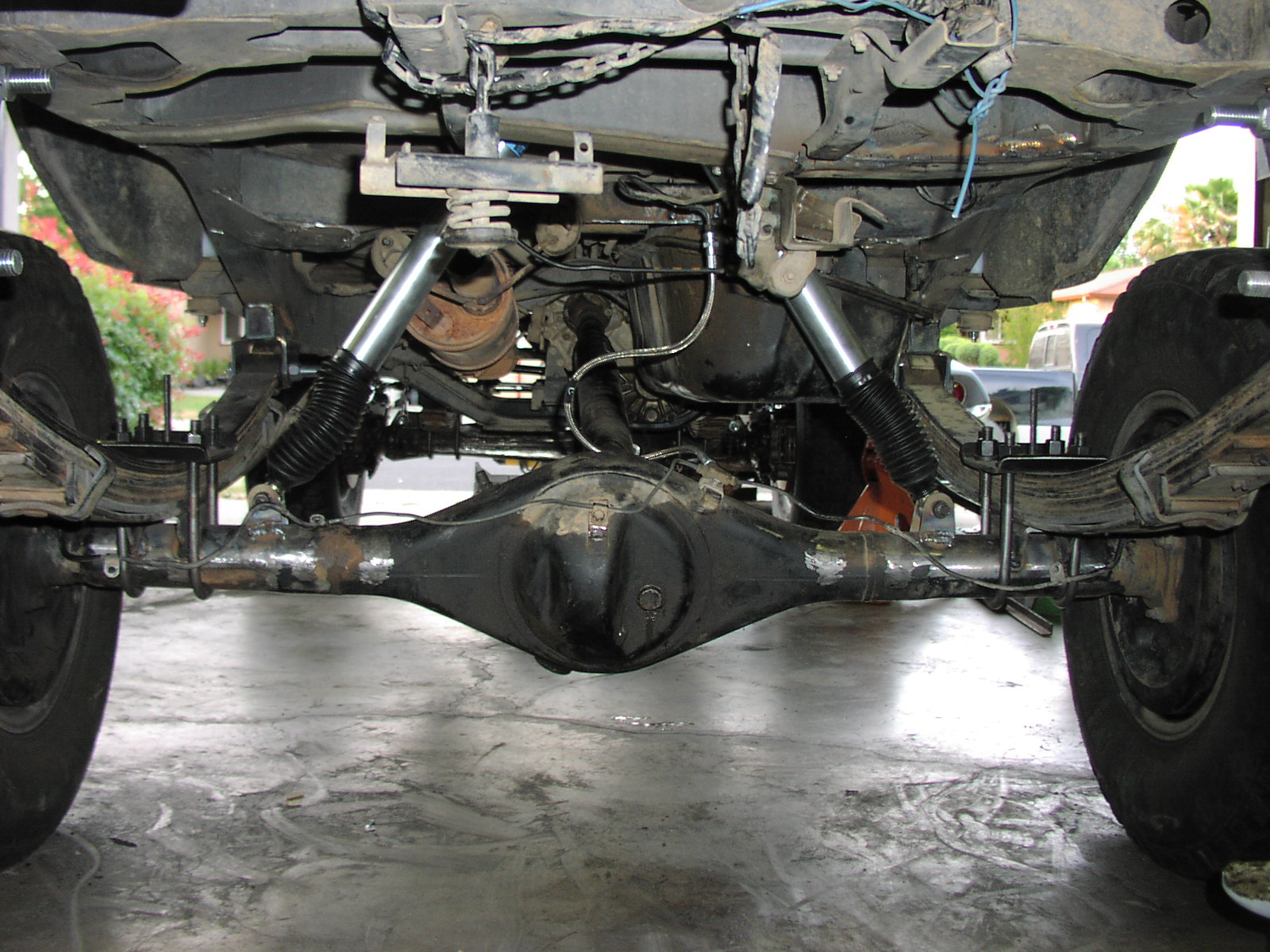

Rear Axle | Axle Housing | Stock |
Differential | Open 4.10 | |
Steel Braided Brake Lines | MarlinCrawler.com | |
Rear Spring Perches | MarlinCrawler.com | |
Shock Perches | Big Rocks |
|
Steering | High Steer | Big Rocks |

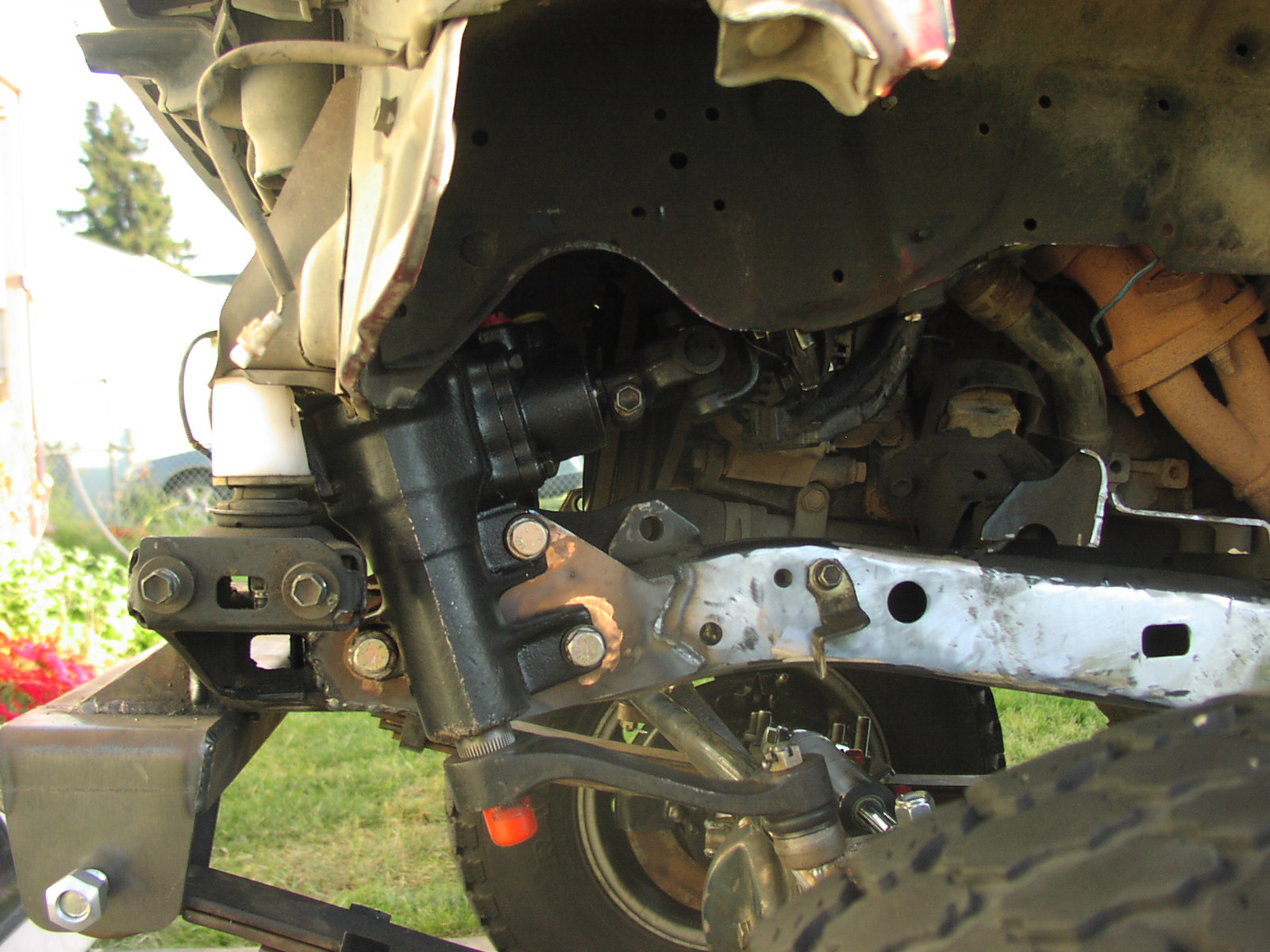

IFS Box, Rebuilt & Tapped | Trail-Gear | |
Rock-Assault Ram Steering | Trail-Gear |
|

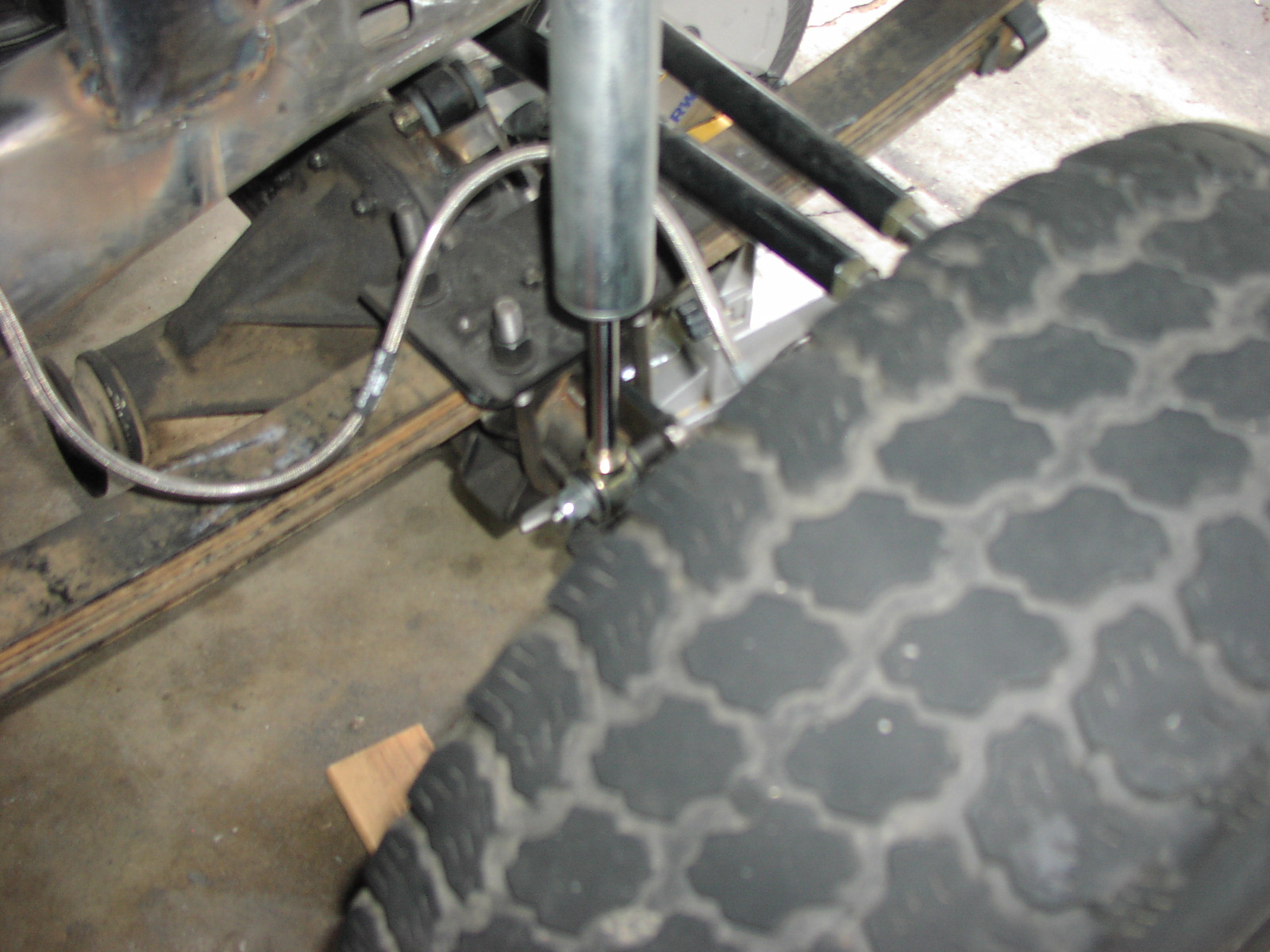

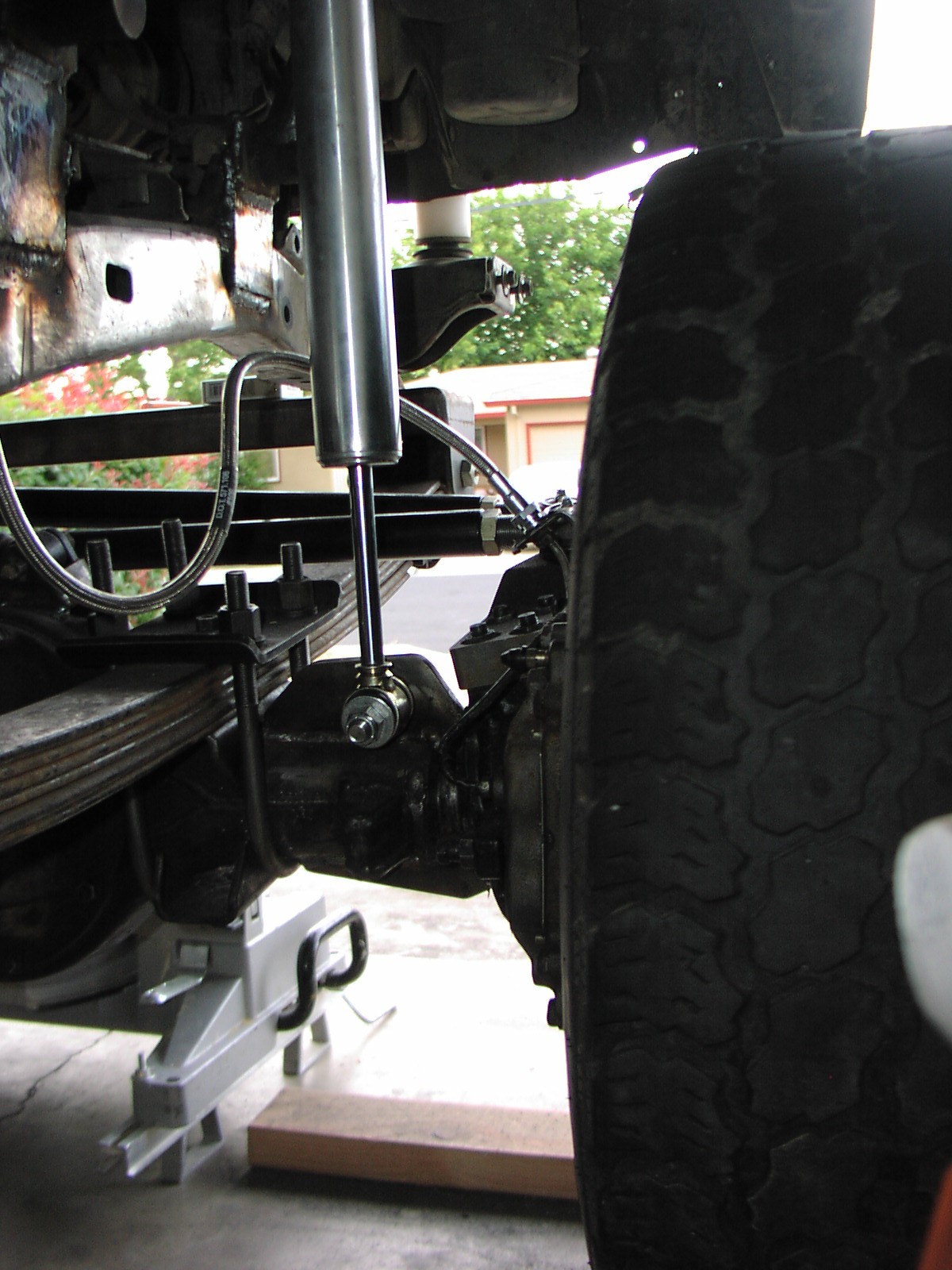

Front Suspension | 14" Bilstein Shocks | MarlinCrawler.com |
Spring Bushings | MarlinCrawler.com | |
Tubes & Jigs | MarlinCrawler.com | |

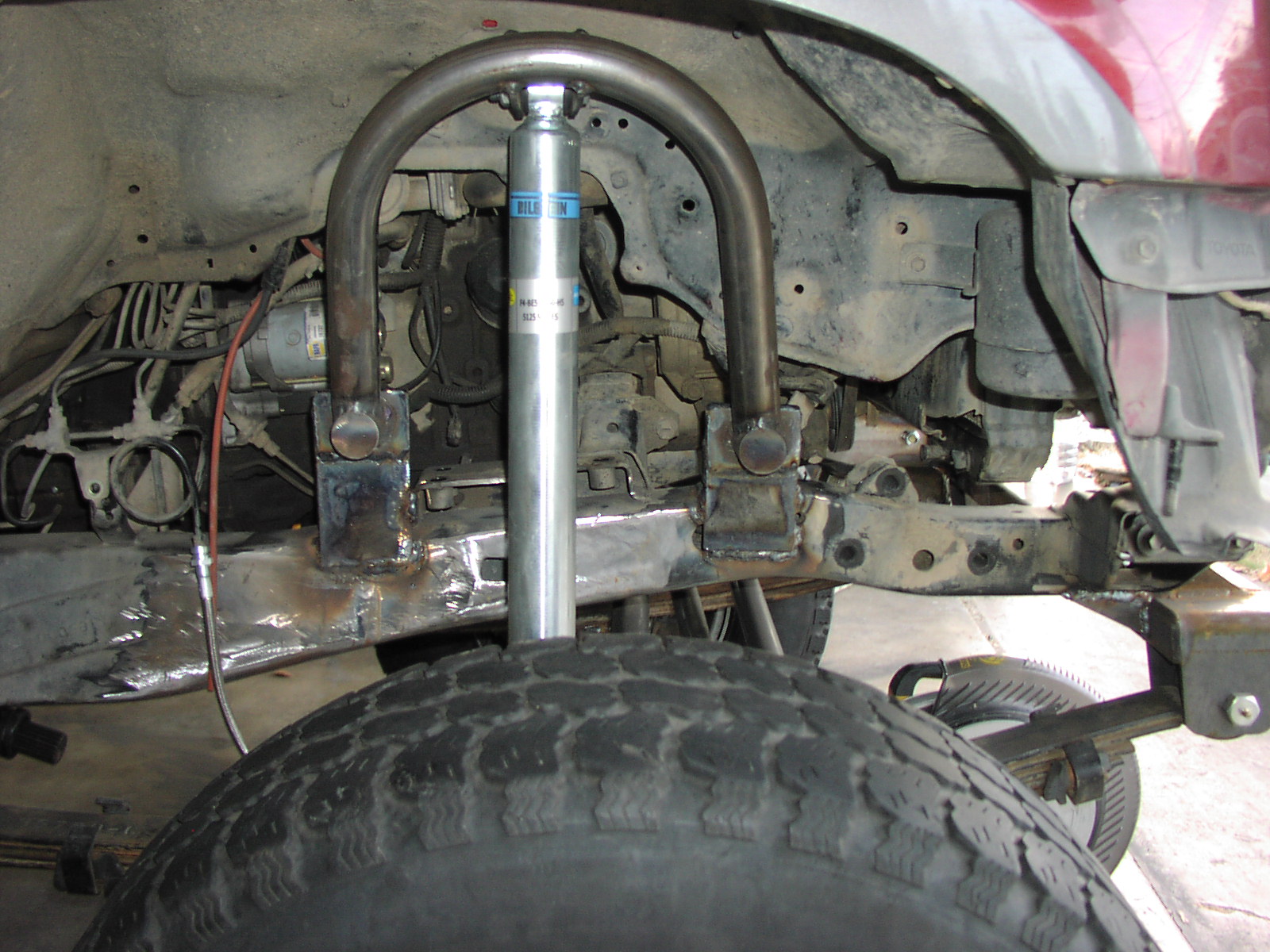

Shock Hoops | Big Rocks | |
Steering Box Support | Big Rocks | |
Polly Bumpstops | Big Rocks | |
Toyota U-Bolt Flip Kit | Big Rocks | |

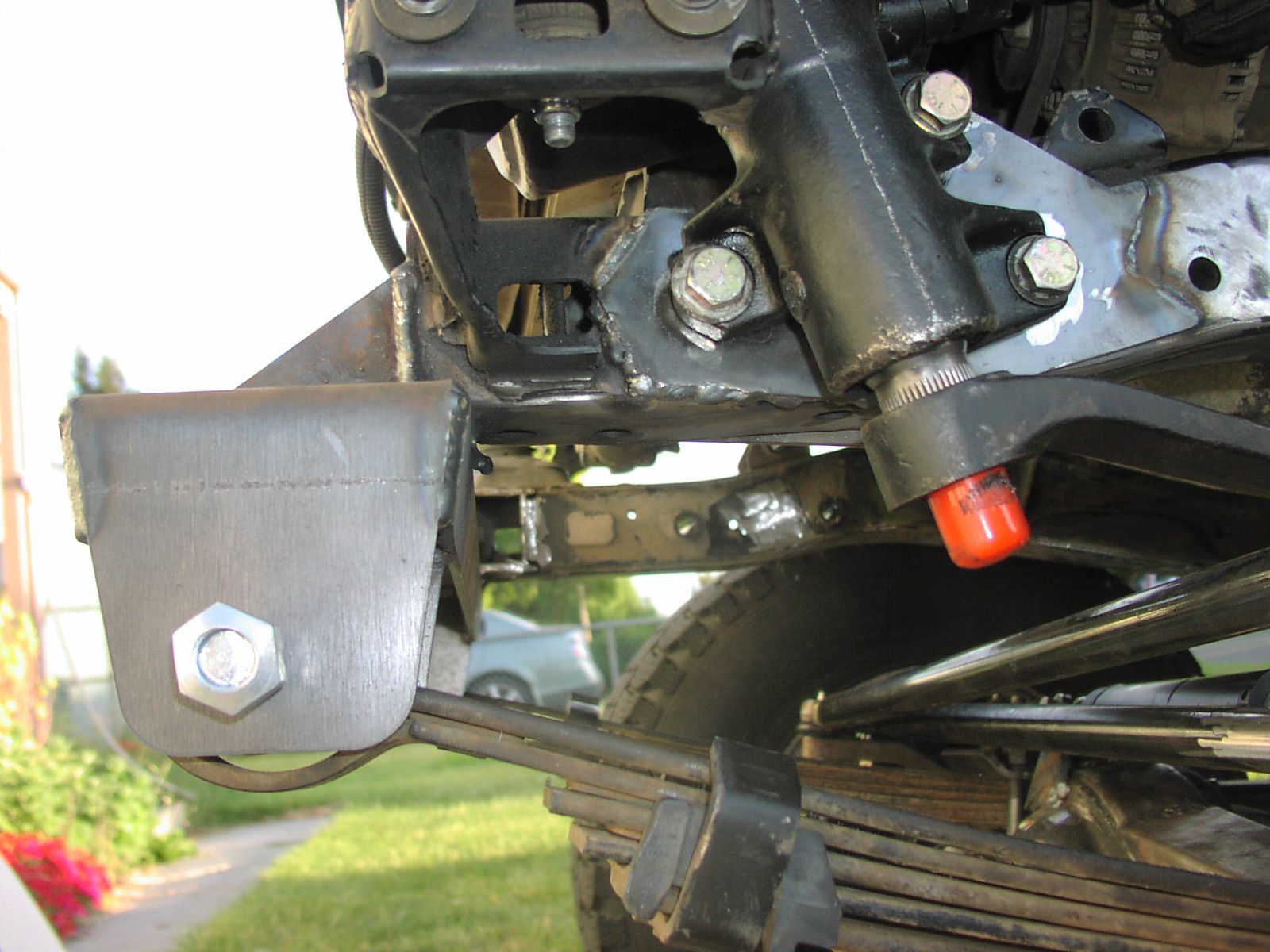

1" Drop Hanger | Big Rocks | |
5.5" Boomerang Shackles (eye2eye) | Big Rocks | |
Bump Stops | 2x2 Square tube, some plate, and a welder | |

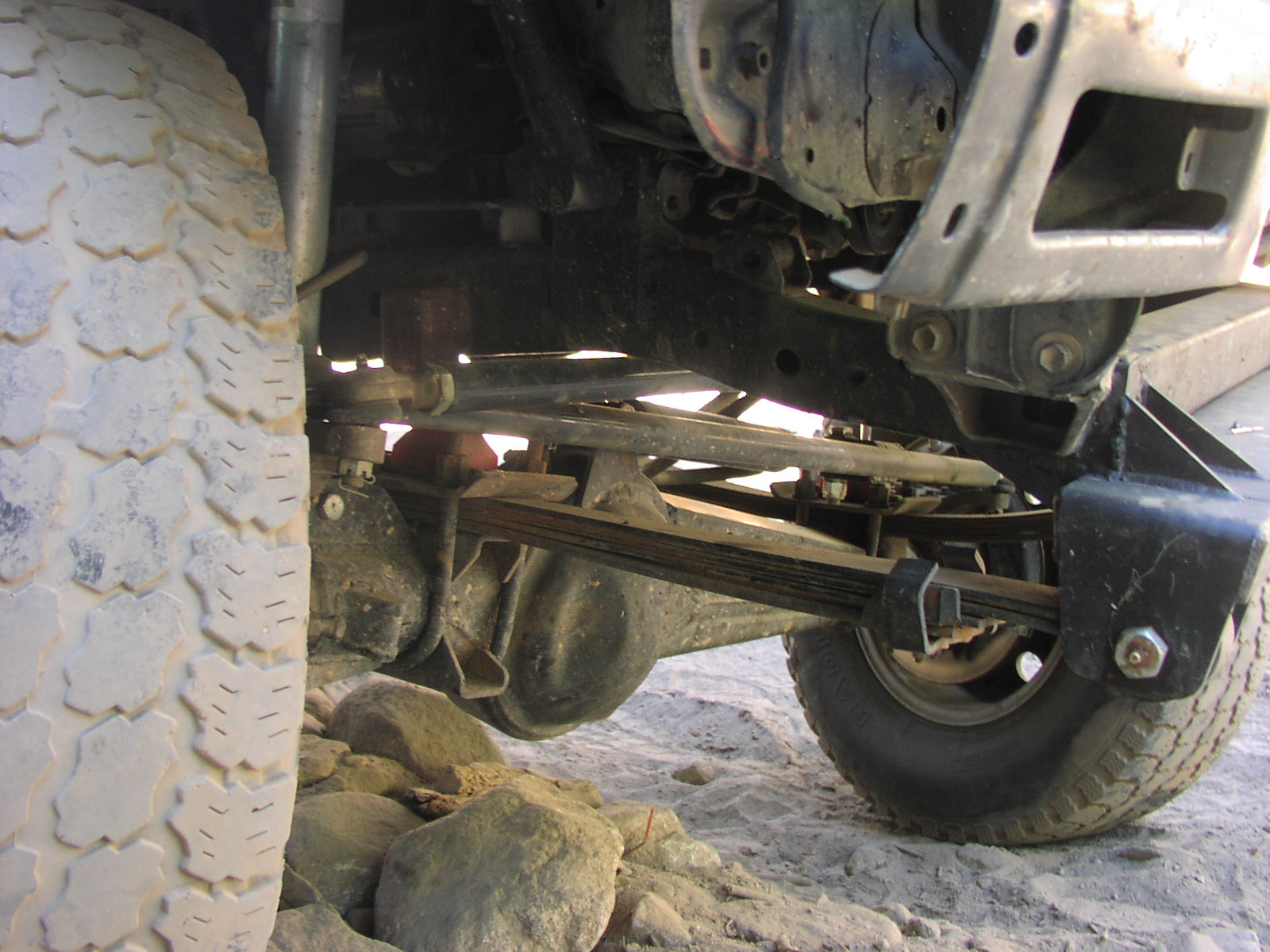

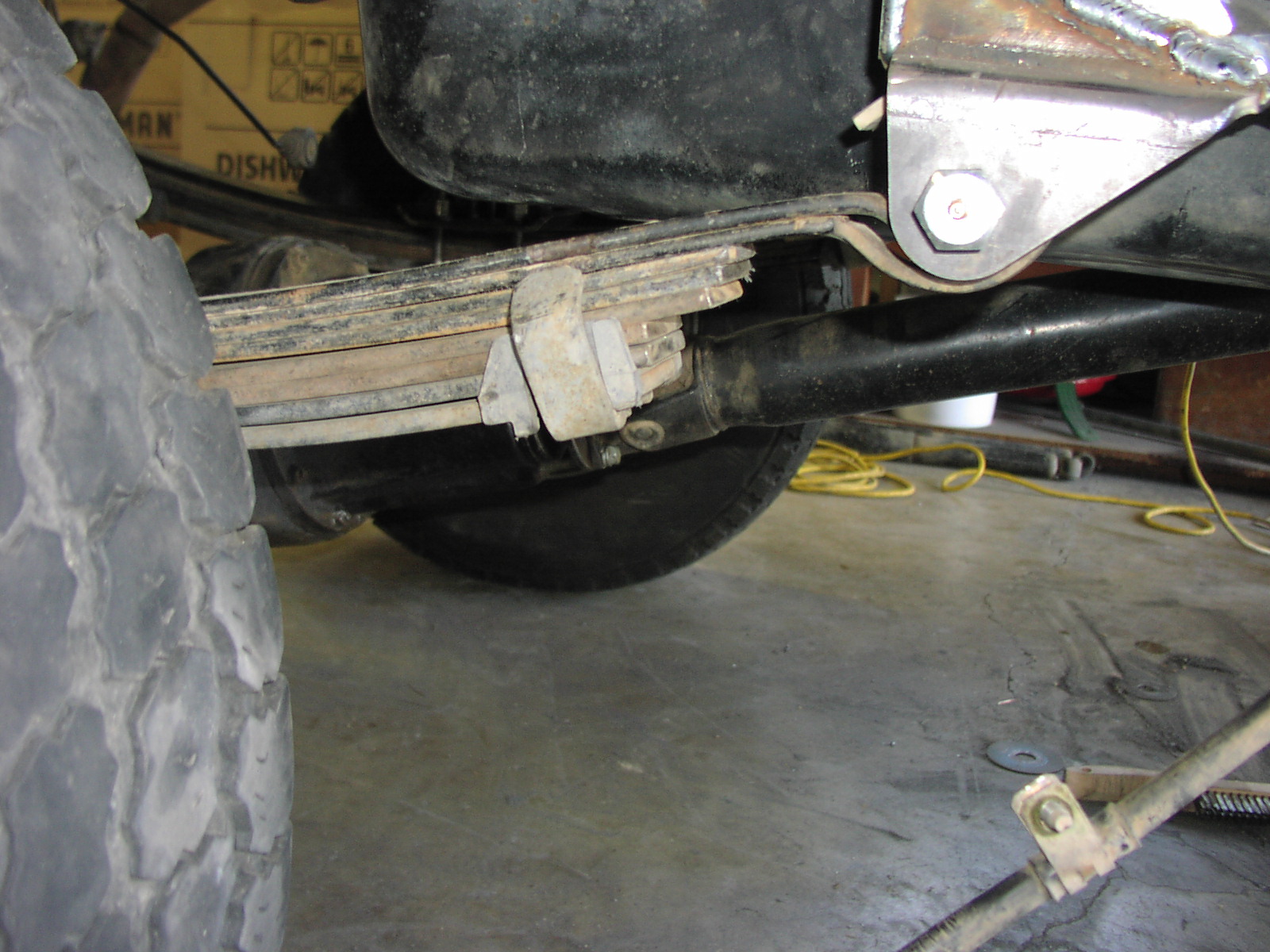

Leaf Springs |
1&2 = Top 2 leafs from 51" rears 3&4 = Cut leafs from 48" rears 5th = 3rd leaf from 4x2 S-10 6th = Misc Toyota leaf |
|

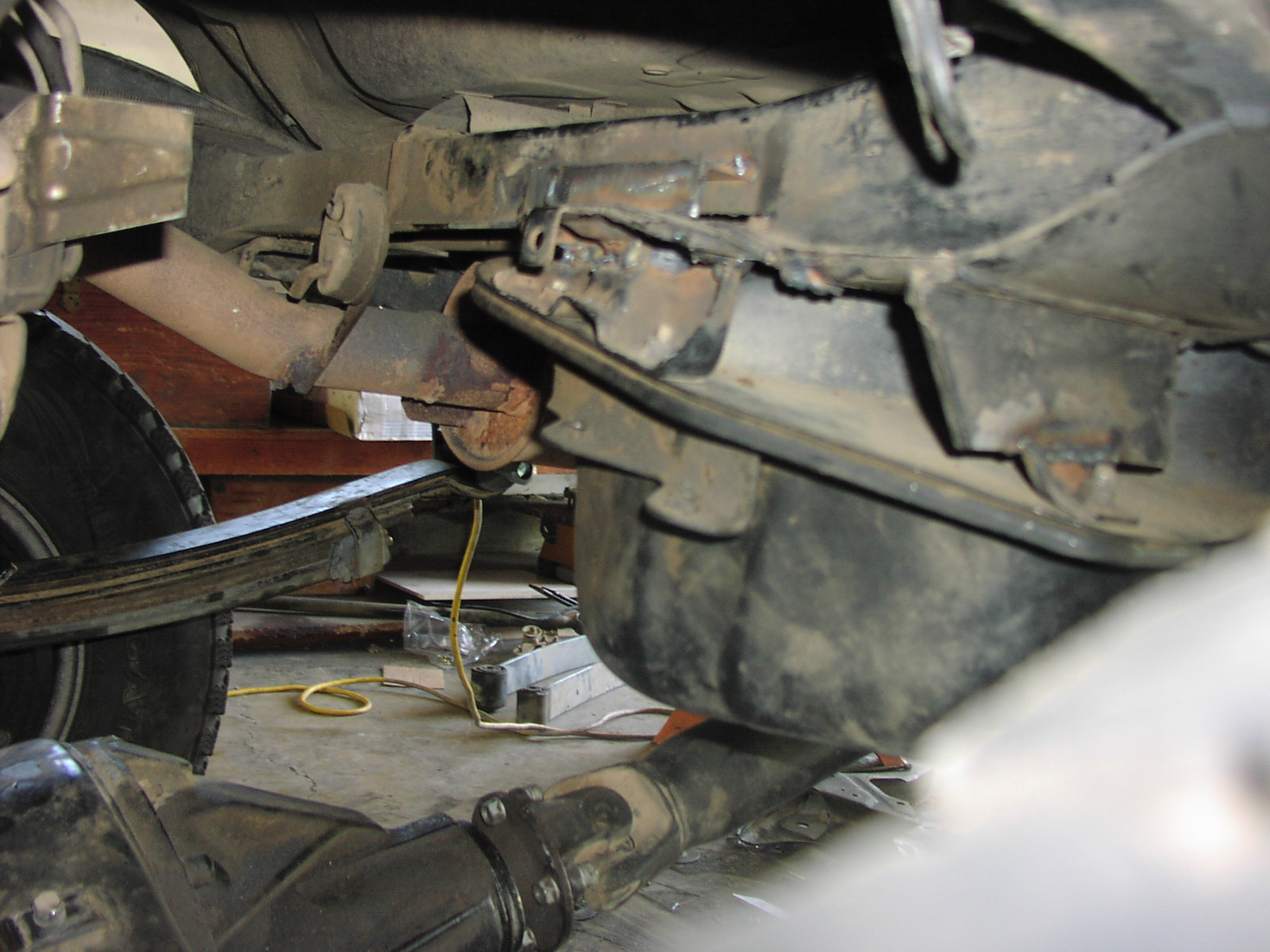

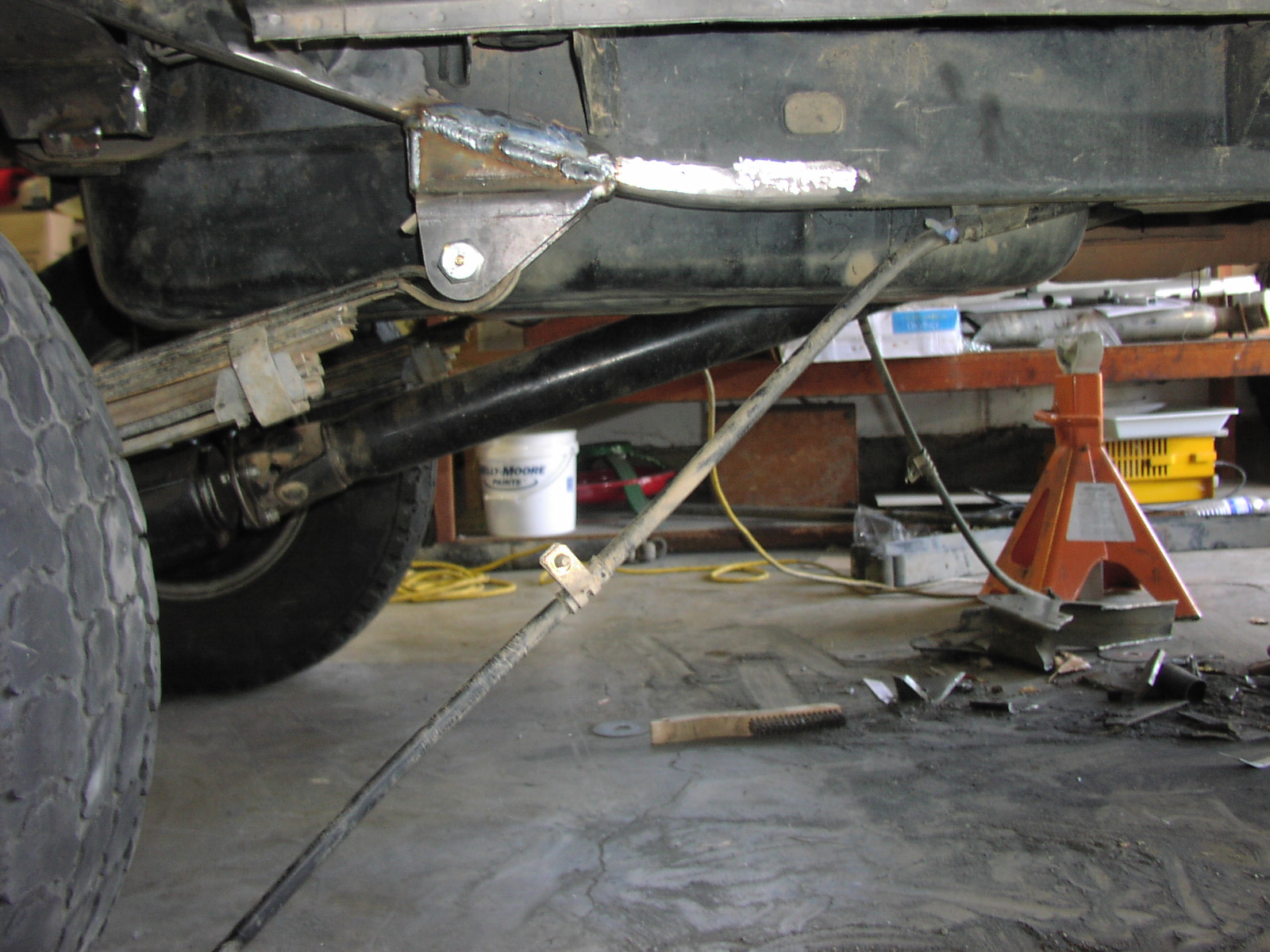

Rear Suspension | Spring Hangers | Big Rocks |
Toyota U-Bolt Flip Kit | Big Rocks | |
Shock Cross Member | Big Rocks | |
Spring Bushings | MarlinCrawler.com | |
Rear Shackle Hanger | MarlinCrawler.com | |
12" Bilstein Shocks | MarlinCrawler.com | |
6inch Shackles (eye2eye) | Made Them | |

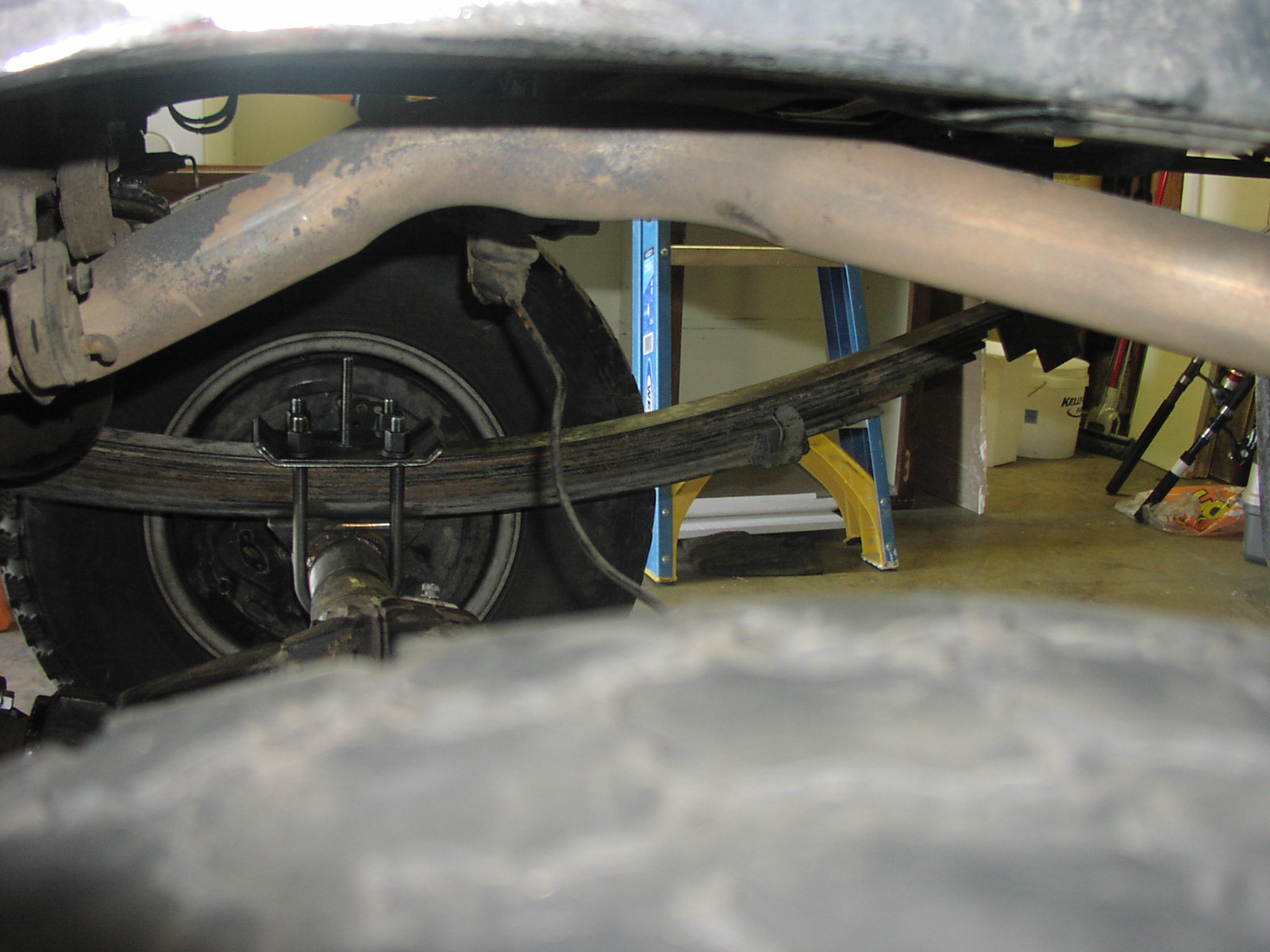

Leaf Springs |
1&2 = Top 2 leafs from 51" rears 3&4 = Cut leafs from 48" rears 5&6 = Cut S-10 Main Leafs 7th = 3rd leaf from 4x2 S-10 |
|
Misc Lifts | 2 inch Body Lift | 4crawler.com |
2 inch Gas Tank Lift | Rebuilt cross members |
|
Tires & Rims | Rims | 15x7 Aluminum |
Tires | 31x10.5 Cooper(Mad Cats) |
